Full Hydraulic Portable Core Drilling Rig, SPT Equipment, Portable Wireline Rotary Drill

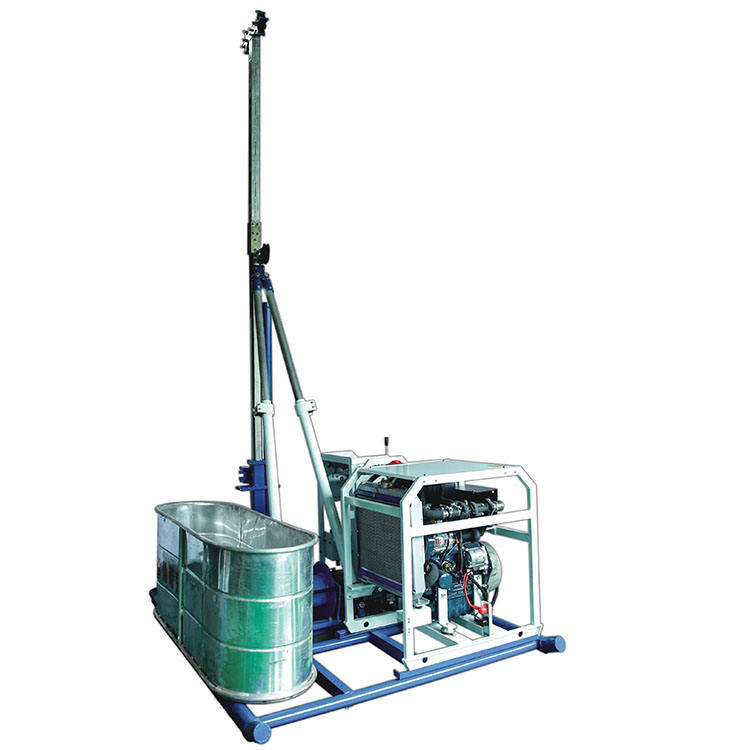

Product Description: Full Hydraulic Portable Core Drilling Rig, SPT Equipment, Portable Wireline Rotary Drill This portable core drilling rig is a professional sampling device for geological exploration, mineral prospecting, geotechnical engineering testing and hydrogeological surveys. It adopts a gasoline-powered air-cooled engine and a detachable modular structure, and is specially designed for core sampling of rocks and soil layers in complex field terrains. It integrates five core advantages: easy portability and disassembly, high-efficiency drilling, intact sample collection, rugged durability and safe operation. It addresses the pain points of traditional drilling rigs, such as large volume, difficult transportation and poor site adaptability. It meets the exploration requirements of rapid hole drilling and accurate core sampling, balances the flexibility of field operations and the professionalism of sampling, and serves as an indispensable tool for geological surveys. Product Parameters： power system Diesel engine :Kubota four cylinder turbocharged;  output power: 33kw;  Max Rotational Speed:2800RPM;  Diesel tank capacity 24L Hydraulic system Oil supply loop:Double hydraulic pump; Multi-channel pressure display, integrated operating platform;water-cooling system;  Max pressure:21MPa Hydraulic tank capacity 30L Rotating system Top drive type drill head;  Rotational Speed:50-1300RPM Continuous adjustable;  Max torque:1243N.M Feeding system Feeding Angle adjustment: 65°-90°(can be extended to 0°-90°);  Cylinder stroke:1.8m;  Lifting force (single/double) 4t/8t; Propulsion (single /double ) 2.1t/4.2t; Mud system Diesel engine direct drive;  Max flow:80L/min;  Max pressure:2MPa Foot Clamp Hydraulic gripper Hydraulic cylinder drive Max clamping diameter: 114mm Wire-line Hoist hydraulic motor direct drive; Wire diameter 5 mm;Rope load capacity:500 m；  Lifting force:10KN；  Max feeding speed：150 m/min Application Scenarios： Geological and Mineral Exploration: Rock sampling in mountainous field areas and mining zones for analyzing rock formation composition and mineral reserves. Geotechnical Engineering Testing: Geotechnical sampling for highway, bridge and building foundations to evaluate foundation bearing capacity. Hydrogeological Survey: Drilling in rock formations during groundwater hydrological investigations to obtain core samples of aquifers. Environmental Monitoring Sampling: Soil and rock formation sampling in contaminated sites for analyzing soil and groundwater pollution conditions. Geological Hazard Investigation: Geological sampling in areas prone to landslides and debris flows to assess hazard risk levels. Contact us to get your quotation now.
