High Torque GRBL Bundle – Large

$ 99.62

GTIN: 8719076049265 MPN: PMP242307010 Categories: , , , Brand:

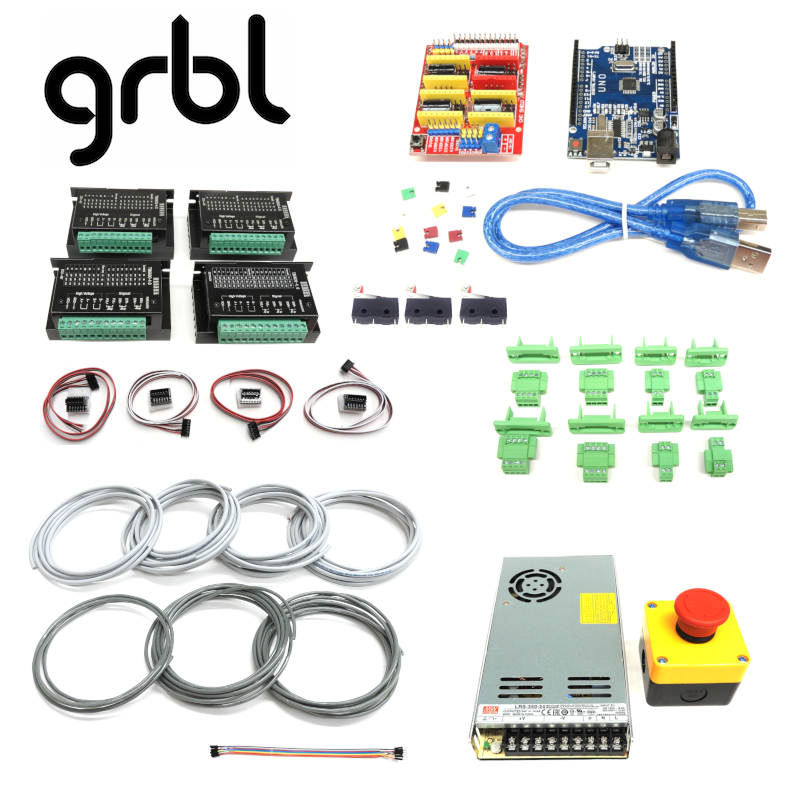

This Controller Bundle will allow you to use the GRBL Controller with our High Torque motors. This controller bundle contains all the hardware that will be required for powering and controlling your CNC Machine Kit. The cables on this “Large” Bundle are designed for machines of the following sizes: 1000mm x 1000mm 1000mm x 1500mm 1500mm x 1500mm For smaller machines see our High Torque GRBL Bundle – Small Specifications: Controller:  Arduino UNO Compatible 14 digital input/output pins – 6 pins can be used as PWM outputs 6 analog inputs 16 MHz crystal oscillator Operates at 5V Recommended input voltage range: 7V to 12V Flash Memory: 32 KB (0.5KB used by bootloader) SRAM: 2KB EEPROM: 1KB CNC Shield V3 Version 3.00 Supports GRBL V0.8 4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13) 2 x End stops for each axis (6 in total) Uses GRBL as control software Power supply: DC 12-36V (No Power Required to the shield in this bundle.) Power: MEAN WELL Power Supply – 24V 350W Output Voltage-Channel: 24V Output Power: 348 W Enclosed Case Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC Output Current-Channel: 14.6A Mounting Style: Chassis Length: 215 mm Width: 115 mm Height: 30 mm Input Frequency: 47 Hz to 63 Hz Unit Weight: 760 g Cables & Connectors: 4 Core Shielded Stepper Cables (For Stepper Motors) 1 x 3000mm 2 x 5000mm 1 x 5000mm 2 Core Shielded Signal Cables (For Limit Switches) 1 x 2000mm 1 x 5000mm 1 x 5000mm DC Power Cable 3mm (To connect Stepper Drivers to Power Supply) 1 x 2000mm Stepper Motor adapter modules (CNC Shield to TB6600 stepper motor drivers) Direct Plug into the motor driver socket on the CNC shield 4 x 200mm EStop Cable (For E-Stop) 22 AWG 1 x 1000mm 4 x EDG-4 4 x EDG-2 (For Limit Switches E-Stop) Dupont Cables Male to Female 10 Pack (For Limit Switches E-Stop) Signal: 3 x Limit Switch Kits 3 x Micro Limit Switch 3 x Limit Switch Plate 6 x M3 10mm Cap Head Screw 3 x M5 8mm Low Profile Screw 3 x M5 Drop-in Tee Nut NOTE: The holes in the switch will need to be opened a little (3mm drill bit) to allow for the M3 screw or you can use an M3 tap to cut a thread into the plastic. 1 x EStop Switch Max Current: 10A Max Voltage: AC 660V. Rated Load: AC: 220VAC/6A, 380VAC/4A, 660VAC/2A DC: 440VDC/0.3A,  220VDC/0.5A, 110VDC/1A TYPE: N/C Withstand Voltage: 2500V /60S Temperature: -25°~ 55° Contact resistance:  <25mΩ Bill Of Materials Included Parts List/Bill Of Materials: Description SKU QTY Arduino(Compatible) UNO R3 with USB cable ELEC-DCCUINO-UNO 1 CNC Shield – No Drivers ELEC-CNC-SHIELD-NODRVS 1 Stepper Driver – TB6600 4A 40V ELEC-TB6600 4 Stepper Driver Adapter Module ELEC-DRV-ADAPTER 4 Connector Terminal Block – EDG 3.81mm 4T ELEC-EDG-T-381-4P 4 Connector Terminal Block – EDG 3.81mm 2T ELEC-EDG-T-381-2P 4 Power Supply 24V 350W ELEC-LRS-350-24 1 CNC Cable Pack – Large ELEC-CABLE-CNCPACK-L 1 Emergency STOP Button N/C Switch ELEC-ESTOP 1 Micro Limit Switch Kit with Mounting Plate ELEC-MICRO-KIT 3 Jumper Shunt – Link (12 Pack) ELEC-JUMPER-12PCS 1 Dupont cable Male to Female 20cm 10 pack ELEC-MF-JUMP-10-20 1 DC Cable 3mm ELEC-CABLE-DC-2C-3MM 2 DC Cable 2 Core ELEC-CABLE-DC-22AWG 1 Resources: For details on how to wire and configure this controller with your machine, please visit our wiki here IMPORTANT NOTE: NEVER connect or disconnect any wire(s) while power is applied. ALWAYS disconnect power before making any connections or disconnections. All mains wiring must be done by a qualified electrician or similarly qualified person. Cable color may vary.
